BELL TRANSFORMER
Share This Product:
  • BELL TRANSFORMER.pdf BELL TRANSFORMER.pdf
  • product information

Applicable to circuit with rated voltage 230V- and rated frequency 50/60Hz, used to power electric bell of extra low voltage.

  • Construction and Feature

  • Five paSafe electrical separation between primary and secondary circuit
  • Provides extra low voltage up to 24V
  • Low temperature rising
  • High output accuracy
  • Extra overload capacity up to 25% within 24 hours
  • Technical Data

  • Rated input voltage: 230V AC
  • Rated output voltage: 8,12, 24V
  • Rated frequency: 50/60Hz
  • Rated power output: 8VA
  • Consumption: 1.15W
  • Service period: continuous operating
  • Pollution class: 2
  • Connection terminals: pillar terminal with clamp
  • Connection capacity: rigid conductor 10mm2
  • Installation On symmetrical DIN rail Panel mounting

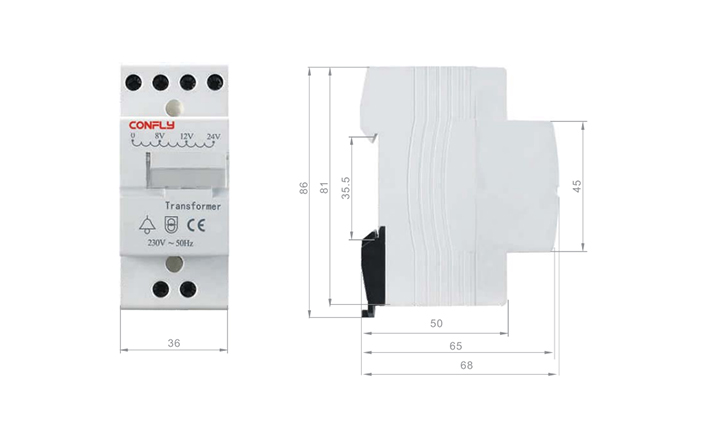

  • Overall & Installation Dimensions
