Busbar

Busbar of pin and fork type ensures reliable and efficient terminal connection to MCB, RCCB and other modular electric devices

  • Construction and Feature

Standard segmented connecting pin saves labour tremendously


High purified copper used to ensure perfect electricity conductivity


Fire resistant mate「1al endures abnormal heating

  • Technical Data

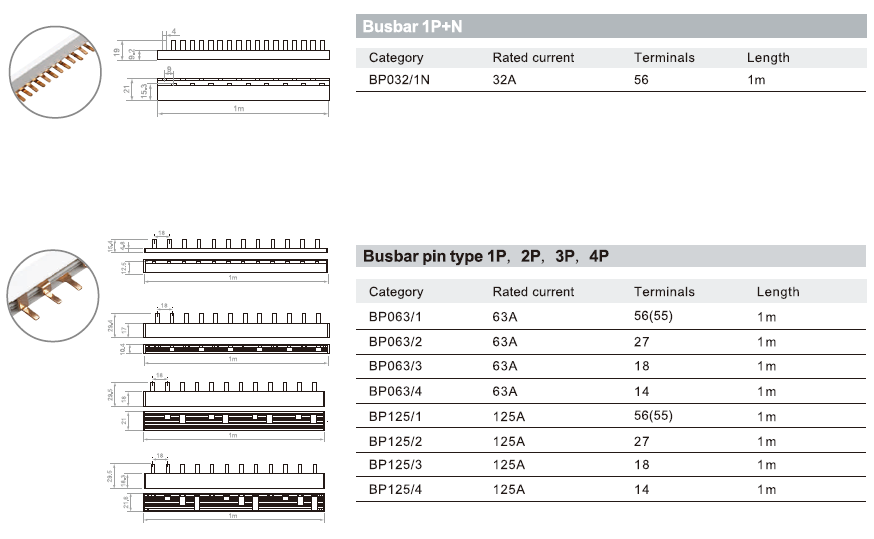

Busbar 1P+N
Shape: pin type
Rated current: 32A
Rated insulating voltage: 500V AC
Flammability of plastic part : class 1

End Cap
Adaptable to full range busbars
Used to insulate the exposed living parts at both ends of busbar

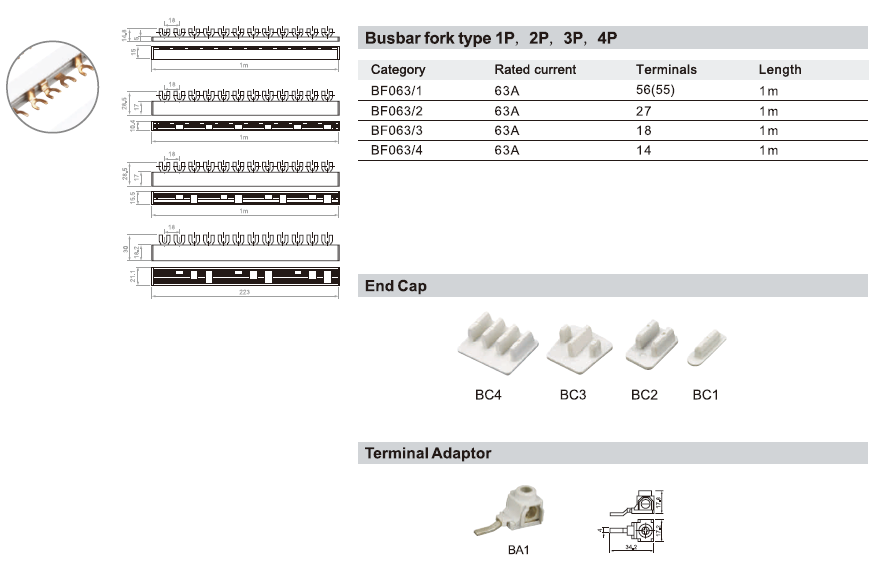

Busbar 1P, 2P, 3P, 4P
Shape: pin type, fork type
Rated current: 63, 125A
Rated insulating voltage: 500V AC
Flammability of plastic part: class 1

Terminal Adaptor
Applicable to busbar for terminal connection
Fixed on busbar insulating part to secure high reliability
Connection capacity: 25mm2
