CFD3-125 Swith-Disconnector
Share This Product:
  • CFD3-125.pdf CFD3-125.pdf
  • product information
  • Function

  • Capable of switch electric circuit with load
  • Adaptable to padlock device
  • Contact position indication
  • Capable of quickly releasing stored energy operation
  • Highlighted of high making and breaking capacity
  • High short-circuit current withstand capacity
  • Used as main switch for household and similar installation
  • Technical Data

  • Standard: IEC60947
  • Pole No.: 1P, 2P, 3P, 4P
  • Rated current(A): 63,80,100,125
  • Rated voltage: 240/415V AC
  • Rated frequency: 50/60Hz
  • Rated short-circuit making capacity: 6kA
  • Rated withstand current: 1KA within 1sec
  • Electro-mechanical endurance: 10000 cycles
  • Connection capacity: Rigid conductor 25mm'
  • Connection terminal: Screw terminal Pillar terminal with clamp
  • Installation: On symmetrical DIN rail 35mm Panel mounting

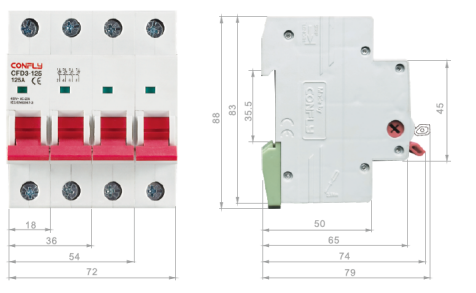

  • Overall & Installation Dimensions
