CFM5-63 MCB
Share This Product:
  • CFM5-63.pdf CFM5-63.pdf
  • product information


Superiority

Isolating function

IP20 full protection

Handle maintains ON/OFF position by itself

Fit for PIN/Furcation type busbar connection

ON/OFF status clear indicate in RED/GREEN

DIN-Rail temporary lock, easier for installation

Easy link-up of different auxiliary contactsreleases etc

Logo easily customsized and moulded in the side of mcb enclosures.

  • Technical Data

  • Standard: IEC60898
  • Pole No.: 1P, 2P, 3P, 4P
  • Rated voltage: 240/415V AC
  • Rated current(A): 1,2,3,4,6,10,13,16,20,25,32,40,50,63
  • Tripping curve: B, C, D
  • Rated short-circuit capacity(Icn): 10kA
  • Rated frequency: 50/60Hz
  • Rated service short-circuit breaking capacity(Ics): 7.5kA
  • Rated impulse withstand voltage: 6.2kV
  • Electro-mechanicla endurance: 8000
  • Contact position indication
  • Connection terminal· Screw terminal Pillar terminal with clamp
  • Connection capacity: Rigid conductor up to 25mm'
  • Fastening torque: 2.0Nm
  • Installation: On symmetrical DIN rail 35mm. Panel mounting

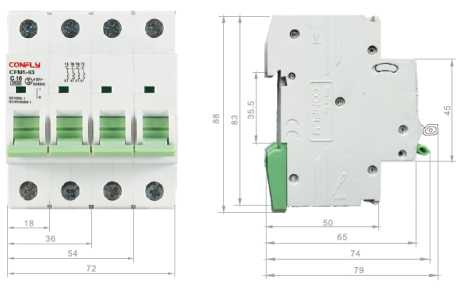

  • Overall & Installation Dimensions

Feedback form contact with us
Related Product
CFM5-63N MCB
CFM5-63N MCB
Miniature circuit breakers are mechanical switching devices able to switch,...
Learn More>

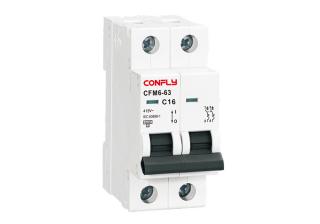

CFM6-63 MCB
CFM6-63 MCB
Miniature circuit breakers are mechanical switching devices able to switch, conduct ...
Learn More>

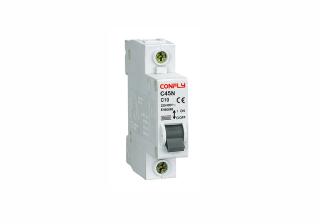

C45N MCB
