CFR7-63 RCCB
Share This Product:
  • CFR7-63 RCCB.pdf CFR7-63 RCCB.pdf
  • product information

Residual current circuit breaker provides the protection against earth fault/leakage
current and isolation function. Also provides the indirect protection against the
operator and the protection of the fire caused by the electric circuit faulty.

  • Technical Data

  • Standard: IEC61008
  • Residual current characteristics: A,AC
  • Pole No.: 2P, 4P
  • Rated making and breaking capacity: 630A
  • Rated current(A): 16,25,40,63
  • Rated voltage: 240/415V AC
  • Rated frequency: 50/60Hz
  • Rated residual operating current I△ n(mA): 30,100,300,500
  • Rated residual non operating current I△ no:0.5I△ n
  • Rated conditional short-circuit current Inc: 10kA
  • Rated conditional residual short-circuit Current I△c:10kA
  • Tripping duration:instantaneous tripping≤0.1s
  • Residual tripping current range:0.5I△ n~I△ n
  • Electro-mechanical endurance: 4000 cycles
  • Connection capacity: Rigid conductor 25mm2
  • Connection terminal:    Screw terminal    Pillar terminal with clamp
  • Fastening torque: 2.0Nm
  • Installation:    On symmetrical DIN rail 35mm    Panel mounting

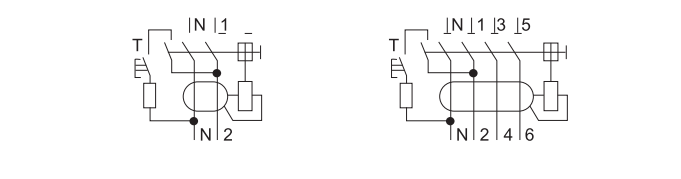

  • Wiring Diagram

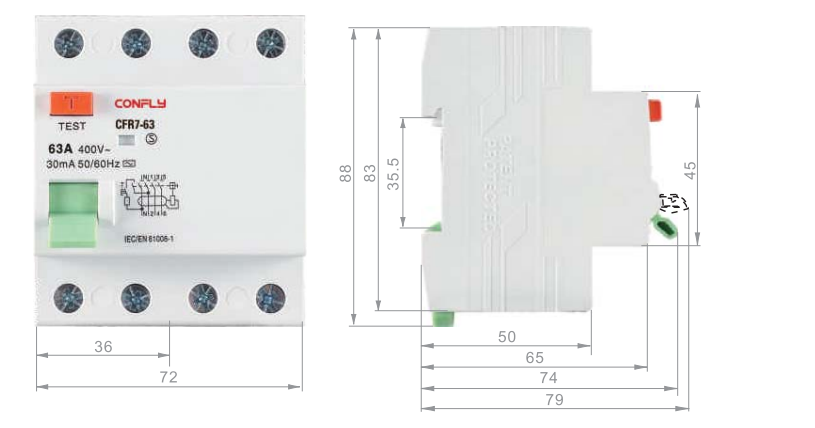

  • Overall & Installation Dimensions
