CFR8-50 RCBO
Share This Product:
  • CFR8-50.pdf CFR8-50.pdf
  • product information
  • Construction and Feature

Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
RCBO handle can be locked either at “ON” position or at “OFF” position to prevent
unwanted operation of the product.
Provides protection against earth fault/leakage current, short-circuit and overload
High short-circuit capacity
Provides complementary protection against direct contact by human body.
Effectively protects electric equipment against insulating failure
Contact position indication

  • Technical Data

  • Standard: IEC61009
  • Residual current characteristics: AC
  • Pole No.: 1P+N
  • Tripping curve: B,C,D
  • Rated short-circuit capacity:10kA
  • Rated current (A): 6,10,16,20,25,32,40,50
  • Rated voltage: 240V AC
  • Rated frequency: 50/60Hz
  • Rated residual operating current(mA) 30,100,300
  • Tripping duration: instantaneous""O.1s
  • Electro-mechanical endurance 4000cycles
  • Connection terminal: pillar terminal with clamp
  • Connection capacity. Flexible conductor 10mm' Rigid conductor 16mm'
  • Installation. On symmetrical DIN rail 35mm Panel mounting

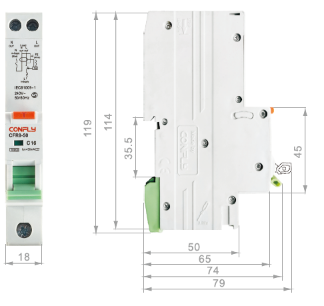

  • Wiring Diagram Overall &Installation Dimensions
