JEB1LE-40 RCBO
Share This Product:
  • JEB1LE-40 RCBO.pdf JEB1LE-40 RCBO.pdf
  • product information
  • Construction and Feature

Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation

Provides complementary protection against direct contact by human body


Effectively protects electric equipment against insulating failure

Provides comprehensive protection to household and commercial distribution systems

  • Technical Data

  • Standard: IEC61009
  • Residual current characteristics: AC,A
  • Pole No.: 1P+N
  • Tripping curve: B,C
  • Rated short-circuit capacity:6kA
  • Rated current (A): 6,10,16,20,25,32,40
  • Rated voltage: 240V AC
  • Rated frequency: 50/60Hz
  • Rated residual operating current(mA) 30,100,300
  • Tripping duration: instantaneous≤0.1s
  • Electro-mechanical endurance 4000cycles
  • Connection terminal: pillar terminal with clamp
  • Connection capacity. Flexible conductor 10mm2 Rigid conductor 16mm2
  • Installation. On symmetrical DIN rail 35mm Panel mounting

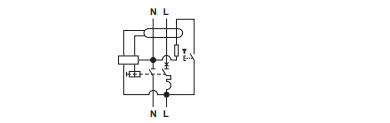

  • Wiring Diagram

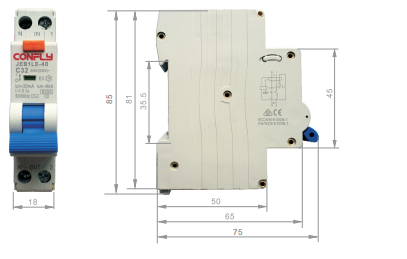

  • Overall &Installation Dimensions
