LC1-D AC CONTACTOR
Share This Product:
  • LC1-D.pdf LC1-D.pdf
  • product information

LC1-D series AC contactor is suitable for using in the circuit rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combine with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC 60947-4.

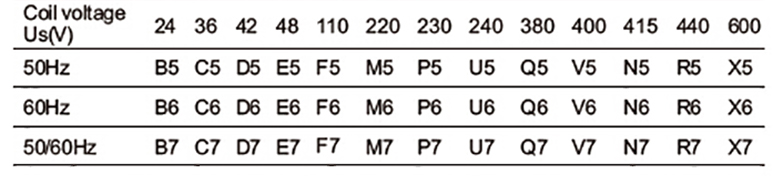

  • Coil voltage of contactor and code of it

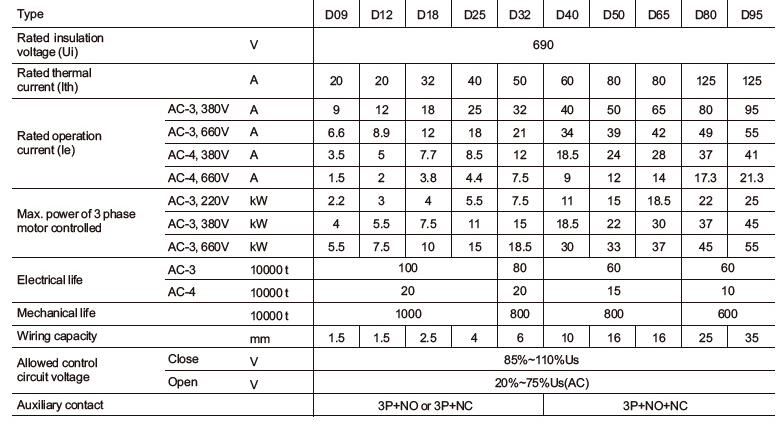

  • Specifications
