M1 MCCB
Share This Product:
  • M1 MCCB.pdf M1 MCCB.pdf
  • product information

M1 Series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage up to 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400(or below), rated operating current up to 1600A for infrequent changing over and starting of the motors. The products conform to IEC60947-2 standard.

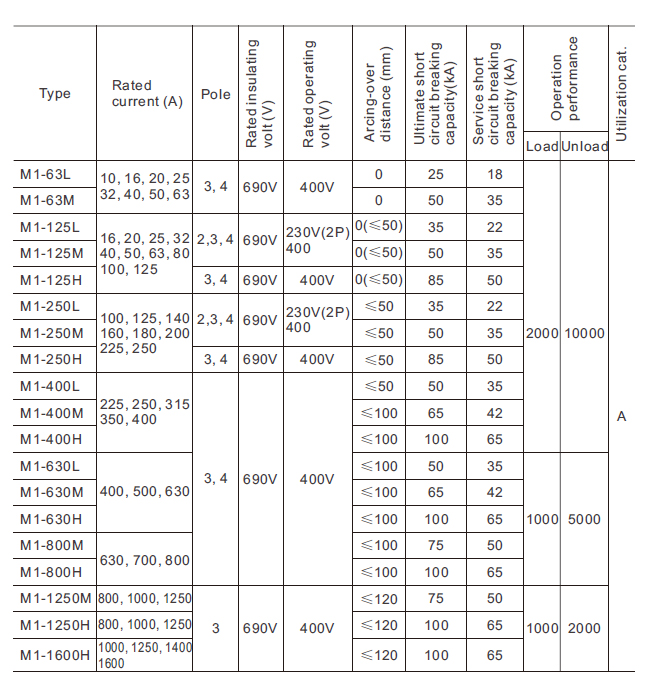

  • Main Technical Specification

Note:

The N line of four poles breaker is at the right side of the product which has four types: Type A: N line doesn’t have over-current protection, N line can’t be opened.

Type B: N line doesn’t have over-current protection, N line can be opened. Type C: N line has over-current protection, N line can be opened

Type D: N line has over-current protection, N line can’t be opened.
